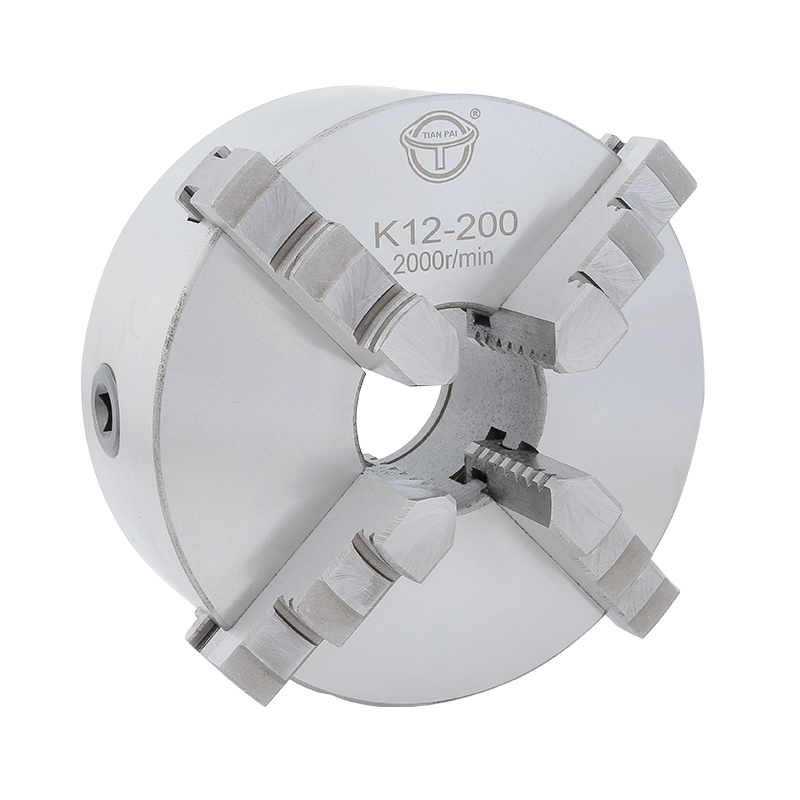

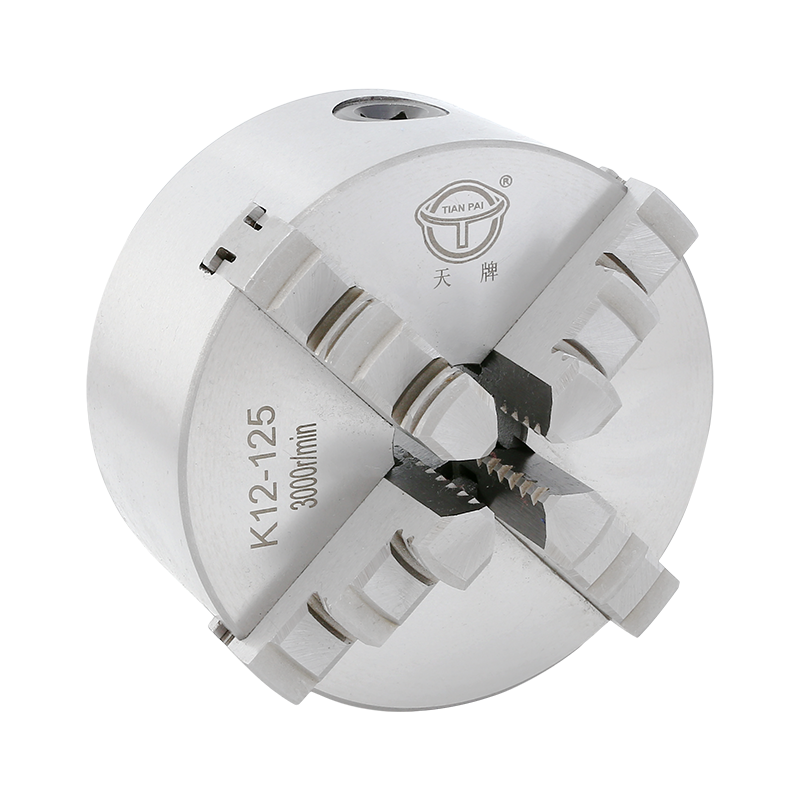

K12 Cylinder Center Mounting Four-jaw Self-centring Chucks

How Do Four-Jaw Self-Centering Chucks Achieve Accurate Centering of Workpieces?

In machining operations, achieving accurate and precise centering of workpieces is crucial for ensuring high-quality and consistent results. Four-jaw self-centering chucks are widely used in various industries for this purpose. It consists of four independently adjustable jaws that move simultaneously to center and secure the workpiece. Unlike three-jaw chucks that rely on a scroll mechanism, four-jaw chucks allow for greater flexibility in holding irregularly shaped workpieces. The mechanism of the four-jaw self-centering chuck to achieve precise centering of the workpiece is as follows.

(1)Individual Jaw Adjustment:

The key feature of a four-jaw self-centering chuck is the ability to adjust each jaw independently. This enables precise centering of workpieces with irregular shapes or uneven dimensions. By individually positioning the jaws, the chuck can accommodate workpieces that are not perfectly symmetrical or have varying diameters.

(2)Equal Division of Clamping Forces:

To achieve accurate and precise centering, four-jaw self-centering chucks distribute clamping forces evenly among the four jaws. Each jaw exerts an equal amount of pressure on the workpiece, resulting in balanced clamping and centering. This equal division of forces helps prevent workpiece distortion or deflection during machining operations.

(3)Jaw Synchronization Mechanism:

To ensure simultaneous movement of all four jaws, four-jaw self-centering chucks employ a synchronization mechanism. This mechanism is designed to link the movements of the jaws, ensuring that they open or close uniformly. It is typically achieved through gears, levers, or a master jaw that serves as a reference for the other jaws.

(4)Scroll or Scroll-Type Mechanism:

Some four-jaw self-centering chucks may incorporate a scroll or scroll-type mechanism to facilitate easier and quicker centering. In these chucks, a scroll plate with inclined tracks is mounted on the chuck body. Each jaw has a corresponding key or pin that engages with the tracks, causing the jaws to move simultaneously when the chuck is actuated.

(5)Adjustable Jaw Gripping Range:

One advantage of four-jaw self-centering chucks is their adjustable jaw gripping range. The jaws can be adjusted to accommodate workpieces of varying diameters, allowing for a wide range of part sizes to be centered accurately. This adjustability makes four-jaw chucks highly versatile and suitable for different machining applications.

(6)Centering Accuracy and Repeatability:

Four-jaw self-centering chucks offer high centering accuracy and repeatability. The independent adjustment capability of each jaw allows for precise alignment with the workpiece's center. Once a workpiece is centered and clamped, the chuck maintains its position, ensuring repeatability when reinserting the same workpiece or replacing it with another of similar dimensions.

(7)Jaw Interchangeability:

Four-jaw self-centering chucks often have interchangeable jaws to accommodate various workpiece shapes and sizes. Different types of jaws, such as standard, stepped, or soft jaws, can be used depending on the specific requirements of the machining operation. This interchangeability enhances the chuck's versatility and centering capabilities.

With proper operator training and experience, these chucks can be utilized to their full potential, ensuring high-quality and consistent results in machining operations.
